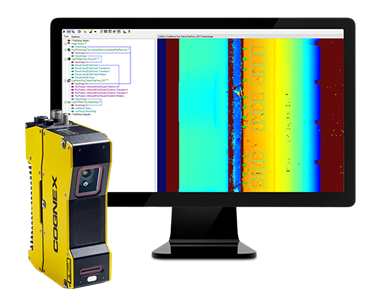

3D-L4000 with VisionPro
Optimize your product quality with high-speed, high-resolution 3D inspections
With a rugged, IP-65 rated design and a compact form factor, the 3D-L4000 with VisionPro easily fits into any production environment and offers manufacturers of all size:
- A versatile solution to automate both 2D and 3D vision tasks
- Full factory calibration to simplify deployment
- Contrast independent inspection for higher detection capability
Full factory calibration for easy setup
- Achieve micron-level accuracy
- Prevent misalignment and motion errors
- Generate measurements in real-world units
- Establish consistency across production lines
- Achieve higher resolution and accommodate wider fields of view
- Simplify multi-head analysis with 3D image stitching
Contrast independent inspection
- Detect objects on challenging backgrounds, including reflective surfaces and dark parts against dark surfaces
- Generate intensity data of different regions concurrently
- Enhance texture of 3D visualizations for more accurate inspections
- Solve a wide range of vision tasks with height, volume, plane-fitting, and tilt tools
Optimize image formation in real-world settings
The 3D-L4000 with VisionPro includes patented, speckle-free blue laser optics that enable the system to capture higher quality images than traditional laser displacement sensors. This type of laser optics minimizes speckle and glare, common problems for 3D laser systems.
| SPECIFICATIONS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VP 3D-L4033 | VP 3D-L4050 | VP 3D-L4100 | VP 3D-L4300 | |||||||
| 1K | 2K | 1K | 2K | 1K | 2K | 1K | 2K | |||
| Measurement range | Clearance distance | 93.00 mm | 92.00 mm | 130.00 mm | 180.00 mm | |||||
| Z-axis (height) | Measurement range | 44.00 mm | 106.00 mm | 235.00 mm | 745.00 mm | |||||
| X-axis (width) | Near field of view | 33.00 mm | 55.00 mm | 75.00 mm | 95.00 mm | |||||
| Middle field of view | 36.00 mm | 72.50 mm | 127.50 mm | 277.50 mm | ||||||
| Far field of view | 39.00 mm | 90.00 mm | 180.00 mm | 460.00 mm | ||||||
| Laser (light source) | Wavelength | 450 nm | ||||||||
| Laser class | 2M | |||||||||
| Output power | 45 mW | |||||||||
| Spot size (middle field of view) | 72 μm | 110 µm | 181 µm | 240 µm | ||||||
| Sensor | Data points/profile | 960 points1 | 1920 points | 960 points1 | 1920 points | 960 points1 | 1920 points | 960 points1 | 1920 points | |
| X resolution | Top | 34.4 μm | 17.2 μm | 57.3 µm | 28.6 µm | 78.1 µm | 39.1 µm | 99.0 µm | 49.5 µm | |
| Bottom | 40.6 μm | 20.3 μm | 93.8 µm | 46.9 µm | 187.5 µm | 93.8 µm | 479.2 µm | 239.6 µm | ||
| Z resolution | Top | 1.7 μm | 2.5 µm | 4.4 µm | 6.9 µm | |||||
| Bottom | 2.7 μm | 6.9 µm | 25.9 µm | 147.5 µm | ||||||
| Z repeatability2 | Top | 0.5 µm | 0.5 µm | 1 µm | 2 µm | |||||
| Bottom | 0.5 µm | 0.5 µm | 1 µm | 2 µm | ||||||
| Z linearity3 | 0.06% of full scale (F.S.) | 0.06% of full scale (F.S.) | 0.04% of full scale (F.S.) | 0.05% of full scale (F.S.) | ||||||
| Temperature characteristics | 0.01% of F.S./°C | |||||||||
| Environmental resistance | Housing protection4 | IP65 | ||||||||
| Operation temperature5 | 0–45 °C (32–113 °F) | |||||||||
| Storage temperature | -20–70 °C (-4–158 °F) | |||||||||
| Maximum humidity | <80% (no condensation) | |||||||||
| Vibration | 10 to 57, double amplitude 1.5 mm X,Y,Z, 3 hours in each direction | |||||||||
| Shock | 15/6 msec | |||||||||
| Scan rate | Up to 4 kHz (after windowing down the sensor) (6Up to 6 kHz) |
|||||||||
| Housing material | Aluminum | |||||||||
| Weight | 0.94 kg | |||||||||
| Dimensions | 150.5 mm x 101 mm x 45 mm | |||||||||
| Power supply requirements | 24 VDC +/- 10%, 750 mA minimum | |||||||||
| Inputs | Trigger, differential/single ended encoder, laser interlock | |||||||||
| Trigger | Input voltage limits: Trig+ - Trig - = -24 VDC to +24 VDC Input ON: >10 VDC (>6 mA) Input OFF: <2 VDC (<1.5 mA) |
|||||||||
| Encoder specifications | Differential: A+/B+: 5–24V (1.0 MHz max) A-/B-: Inverted (A+/B+) Single ended: A+/B+: 12–24V (1.0 MHz max) A-/B-: VDC = ½ (A+/B+) |
|||||||||
| Interface | Gigabit Ethernet interface Integrated link and traffic LEDs Standard M12-8 X-coded female connector |
|||||||||
| Software Compatibility | VisionPro 9.9 SR1, Cognex Designer 4.4.3 | |||||||||
| Vision Tools | 3D Pattern Finder, Height, Tilt, Plane-fitting, Volume and Cross-section, PatMax, IDMax®, and OCRMax™ | |||||||||
1 Only available when binning is enabled in the camera settings.
2 Z repeatability is measured an average of 100 times over a pointcloud using a 4x4 mm area, at the middle of the measurement range.
3 Z linearity is the maximum deviation of 250 position measurements on the measurement range, where a measurement is the average of 2 profiles using the standard Cognex target.
4 From the standard ambient temperature 21 °C (70 °F).
5 Mounted to a 400 mm aluminum bar along the camera’s fins (parallel to the camera) on top of the vision system.
6When binning is enabled and the FOV is windowed down.
| WORKING DISTANCE | ||||
|---|---|---|---|---|
| VP 3D-L4033 | VP 3D-L4050 | VP 3D-L4100 | VP 3D-L4300 | |
| Clearance distance (CD) | 93 mm | 92 mm | 130 mm | 180 mm |
| Near field of view | 33 mm | 55 mm | 75 mm | 95 mm |
| Far field of view | 39 mm | 90 mm | 180 mm | 460 mm |
| Measurement range (MR) | 44 mm | 106 mm | 235 mm | 745 mm |
