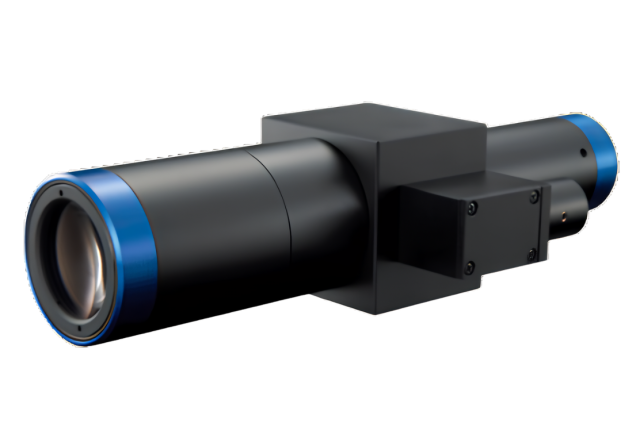

SOD-X Series
Price
฿ 0,00
- Telecentric Lens
- High optical magnification
- Compact, integrated design
Manufacturer:
Moritex
Availability:
In Stock

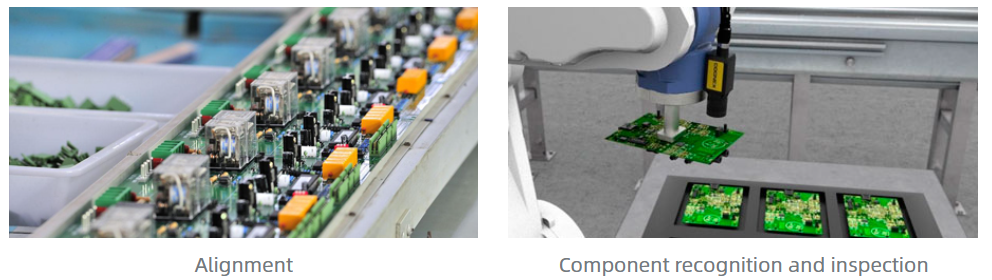

Main Applications
| Spec | SOD-10X | SOD-20X-VI |
| Coaxial Illumination | - | - |
| Magnification | 10 | 20 |
| WD (mm) | 55.2 | 37.5 |
| Resolution (μm) | 1.5 | 1.0-3.0 |
| Depth of Field (mm) | 0.017 | 0.005-0.0177 |
| NA | 0.23 | 0.35-0.114 |
| Effective Fno | 22 | 28.3.88 |
| Distortion (%) | 0.01 | 0.02 |
| Weight (g) | 500 | 930 |
| Largest Compatible Sensor | 2/3" | 2/3" |
| Mount | C-Mount | C-Mount |
