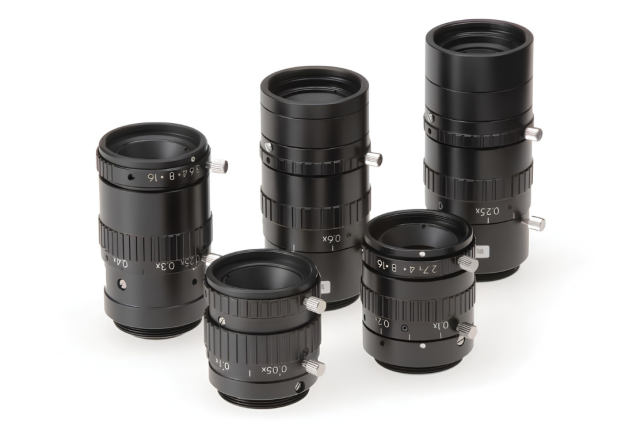

ML-MCHR Series
- 2 Mega Pixel Macro Lens
- Vibration resistance design
- Distortion-free, high-performance design
High-quality image and image format 12.8mm, the ML-MCHR Series is not only the best machine vision lens compatible with the latest 2 Mega pixel CMOS sensor, but also vibration resistance design is one of great benefit for industrial applications.
• Vibration resistance up to 5G (*1), 10G version option available
• Five models with magnification range from 0.05× to 1.72× (*2)
• Close-up rings can be used to adjust magnification and working distance
• Distortion-free, high-performance design
• Maximum compatible image format: ø12.8
*1 Vibration conditions: Frequency range: 10-200 [Hz] Test cycle: 8 minutes ×10 sets against X, Y, and Z directions Maximum acceleration: 5G Maximum amplitude: 1 mm Lock screws used
*2 Magnification using close-up rings
