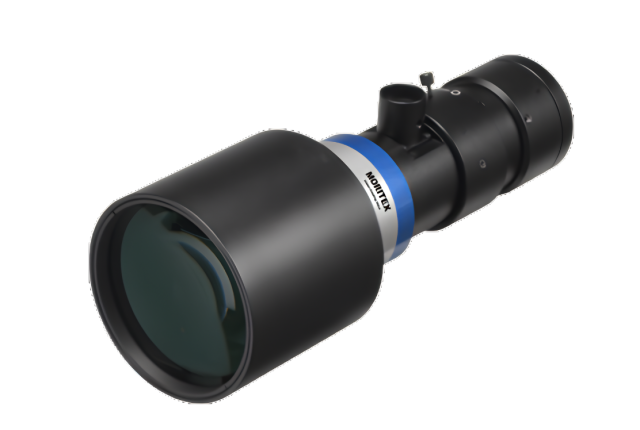

MTL Series
Price
฿ 0,00
- Bi Telecentric Lens
- High-resolution performance
- Near-zero distortion and tight telecentricity
- FOVs ranging from 35 mm to 310 mm
- Up to 82 mm max sensor size
Manufacturer:
Moritex
Availability:
In Stock
MTL lenses high resolution, C-mount bi-telecentric lenses are compatible with 3.5 μm/pixel sensors with image circles up to 18.5mm. Featuring low distortion and high telecentricity, MTL bi-telecentric lenses are designed for industrial applications, such as precision parts measurement and inspection, that require high precision and accuracy
Moritex MTL lens features
- Bi-telecentric lens
- High resolution design compatible with 3.5 μm/pixel sensors
- 15 FOV types
- Inspection data provided for every lens
Moritex MTL typical applications
- Smartphones: parts inspection (glass panel, battery, camera etc.), assembly process and final inspection
- High precision parts measurement and inspection
- Automotive parts: Camshaft, engine and catalyst
- Watch parts and assembly process
