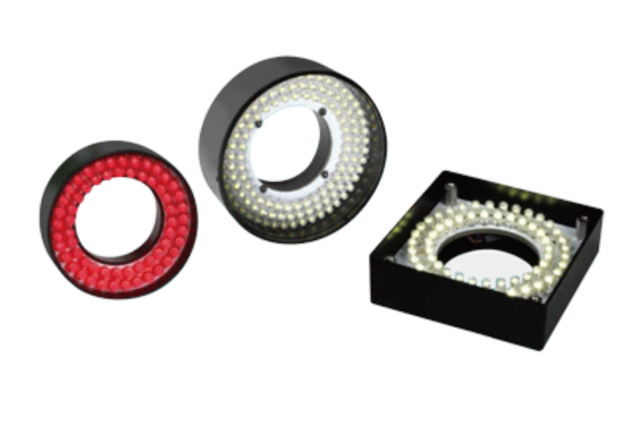

Direct Ring Illumination
▪ High density to produce 360-degree shadowless illumination
▪ Wide range of applications
▪ Ability to select the model that matches with lenses.

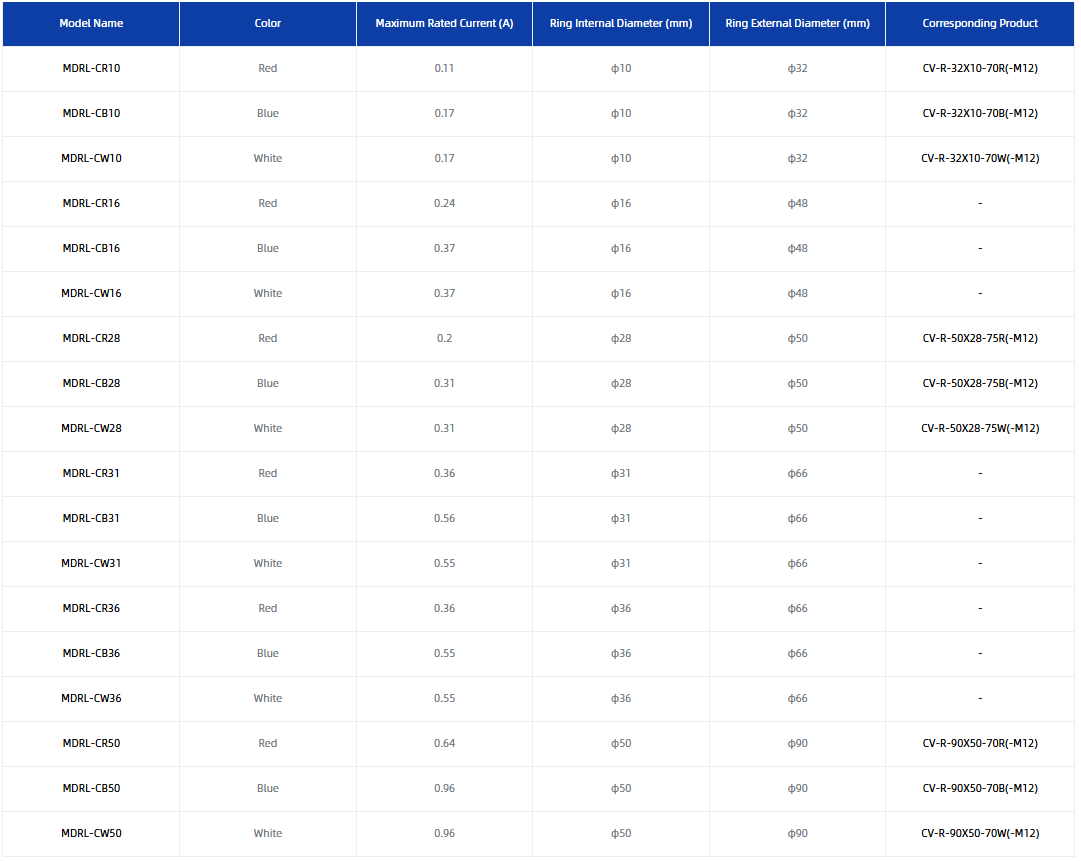

MDRL Series
▪ High intensity LEDs deployed in high density to produce 360-degree shadowless illumination
▪ Standard type of LED lighting for a wide range of applications
▪ Ability to select the model that matches our lenses

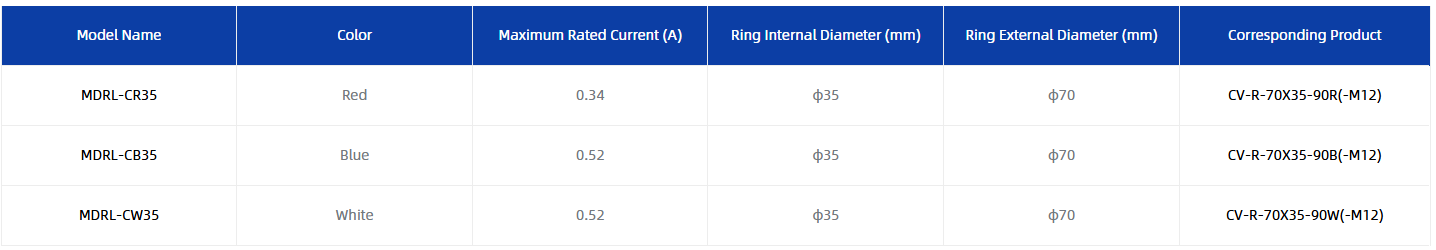

Long Working Distance MDRL Series
▪ The long working distance type makes a clear distinction from the conventional direct ring MDRL Series.
▪ The recommended working distance is 65 mm or more. If the object surface is reflective, a working distance of about 200 mm is acceptable

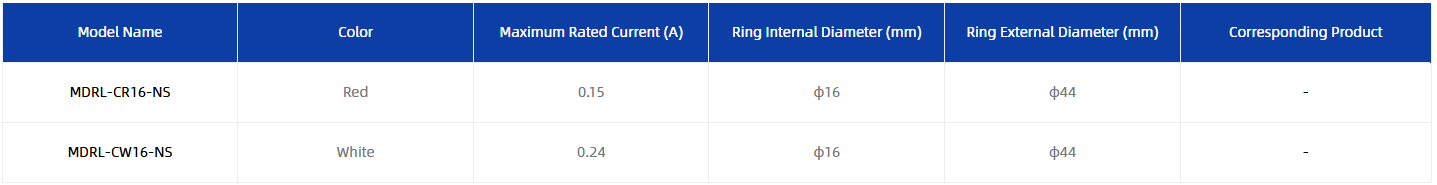

MDRL-NS Series
▪ High intensity LEDs are placed in a highdensity array to provide uniform lighting without shadows from all directions.
▪ A standard type of LED illumination that can used for a wide variety of applications.
▪ Intended for working distance from 65 mm to 200 mm for highly reflective materials.

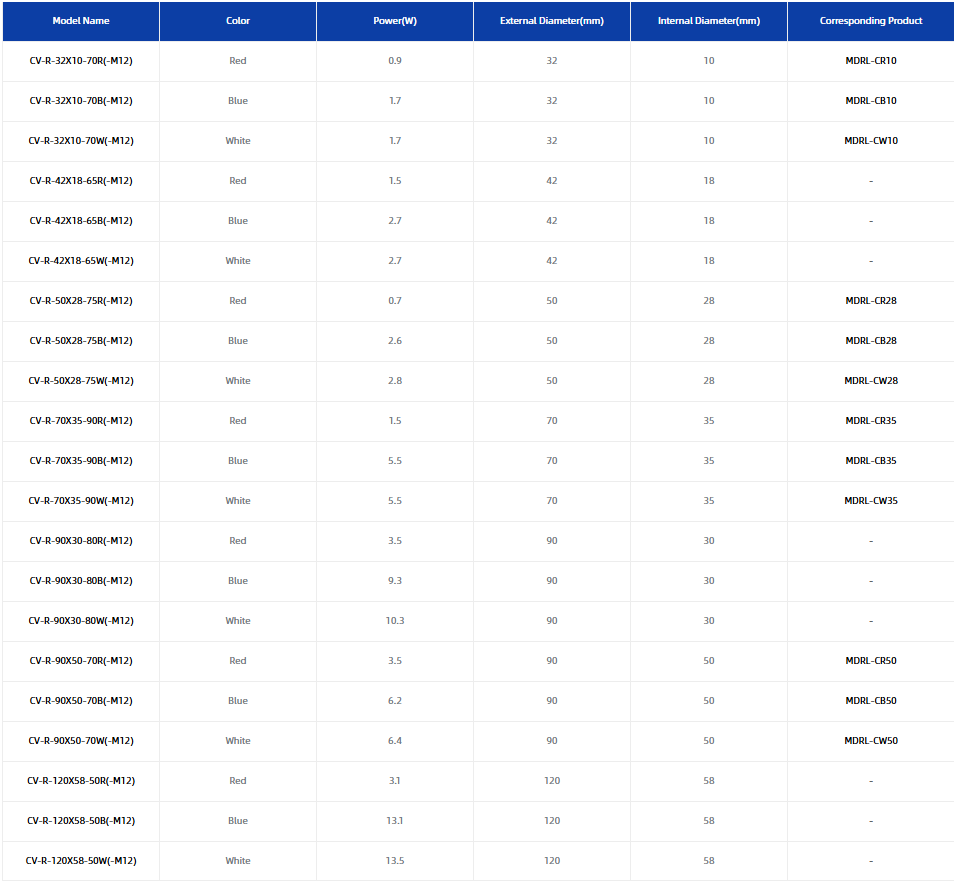

CV-R Series
▪ By producing lighting from 360 degrees, this series delivers shadowless, uniform light.
▪ This standard type of LED illumination can be used in a wide range of applications.

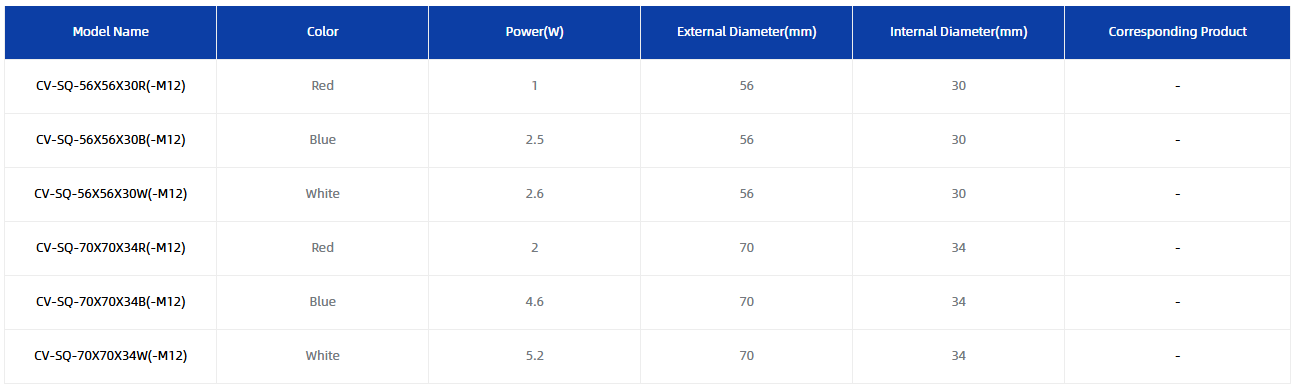

CV-SQ Series
▪ Ring illumination with LEDs mounted vertically onto a planar substrate in a square chassis.
▪ Square shape to make mounting easier in industrial applications.
