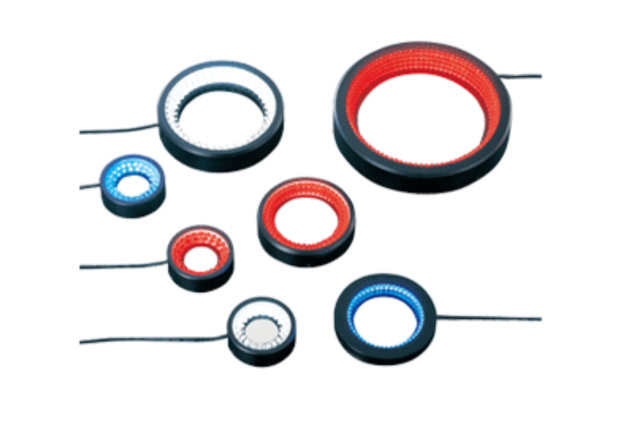

Low Angle Ring Illumination

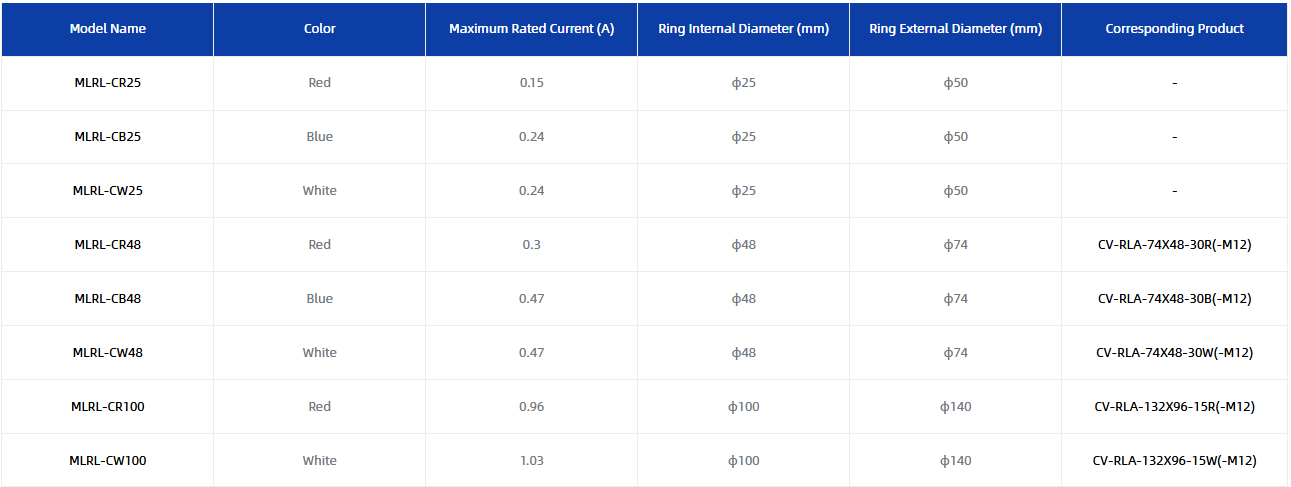

MLRL Series

▪ Optimal lighting for recognizing shallow unevenness like embossing, scratches, etc. using 360-degree illumination from a shallow angle to ensure that the LEDs are not reflected even on glossy workpieces.

▪ MLRL-CR (also -CG, -CB and -CW) 46/109 products provide zero-degree lighting output.

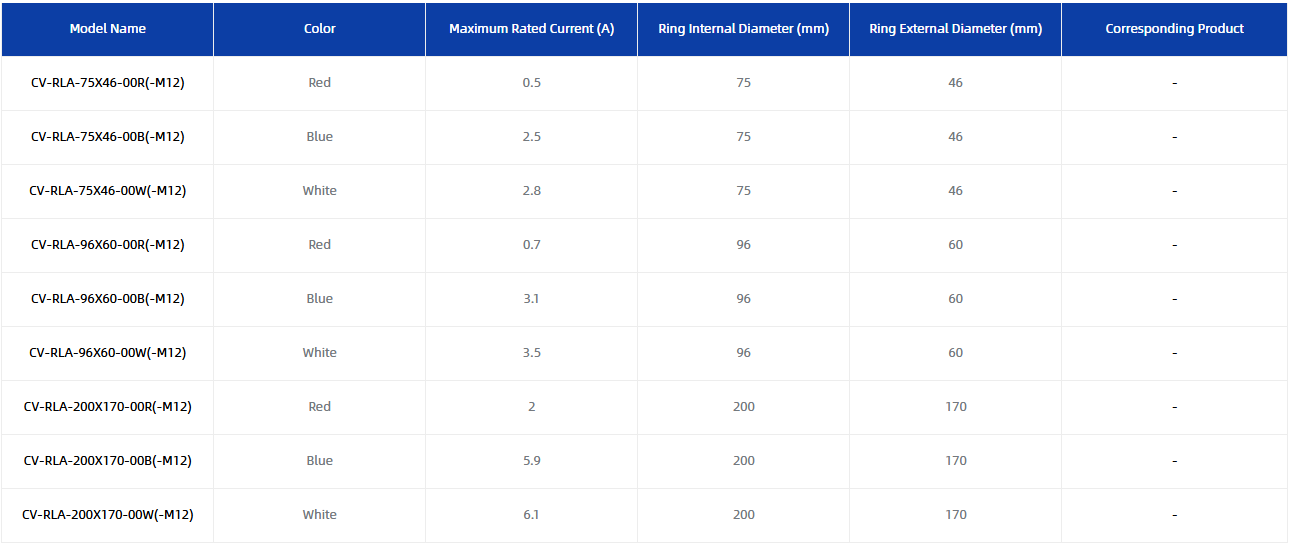

CV-RLA-00 Series

▪ Providing horizontal illumination from 0 degrees, these models can be installed at extremely short working distances.

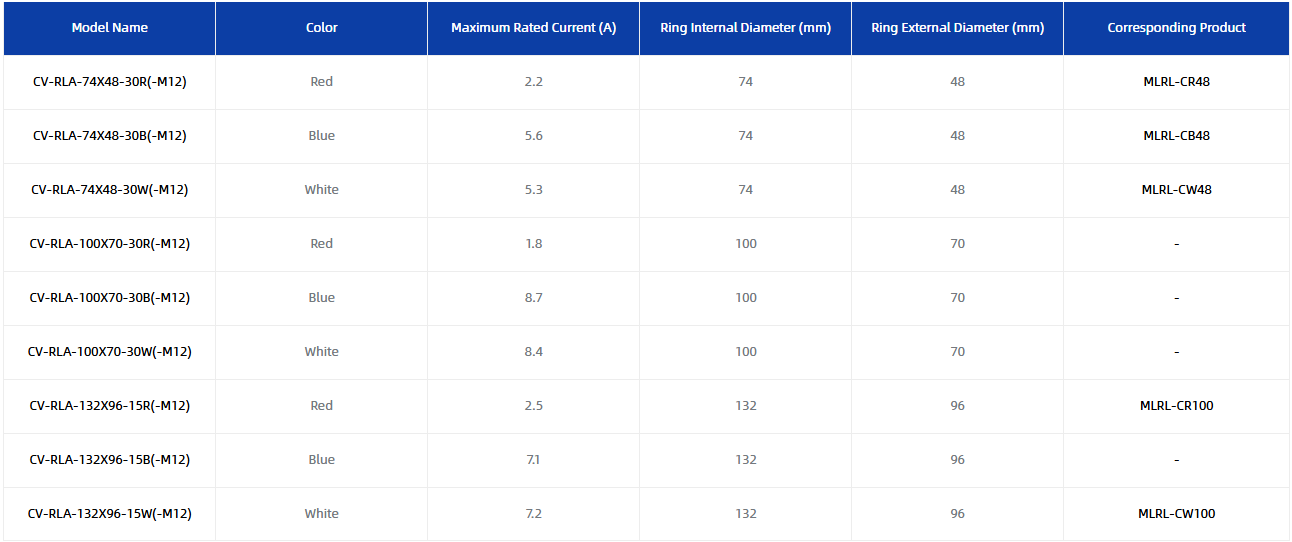

CV-RLA Series

▪ Reflection can be minimized by the low-angle, dark-field lighting configuration.

▪ Ideal for imaging of uneven surfaces such as embossment and surface flaw detection.
