SR Series
Price
฿ 0,00
- A vibration-resistant, compact designed lens for high-resolution sensors
- Up to 1.1" with a pixel size of 2.74 μm
- Along with an AR coating, transmitting visible to NIR (400–1000 nm)
Manufacturer:
Moritex
Availability:
In Stock
Standard and Large Format Lenses
Moritex standard and large format lenses provide flexible optical solutions for a range of applications. These lenses are compatible with different camera types, from low-resolution models to advanced area scan and line scan cameras with over 16 MP resolutions. This ensures optimal performance in various imaging scenarios and manufacturing environments.

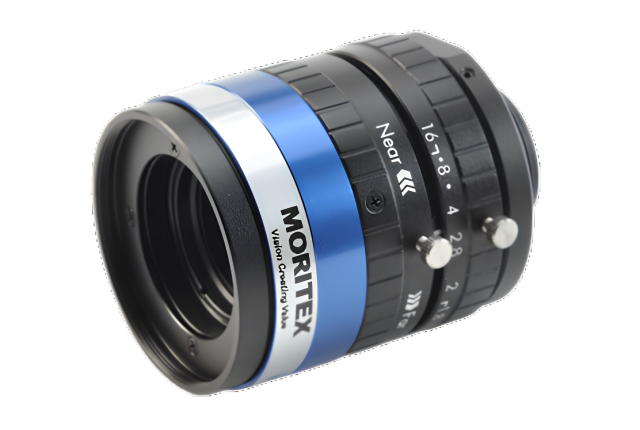

SR Series C-Mount Design
A vibration-resistant, compact designed lens for high-resolution sensors, up to 1.1" with a pixel size of 2.74 μm, along with an AR coating, transmitting visible to
NIR (400–1000 nm).
| Product ID | Focal Length |
F No. | Max. Sensor Size |
Min. WD |
Dimensions O.D. x Lens Tube Length (mm) |
| LMC-ML-U0817SR | 8 mm | f/1.7–f/16 | 1.1" (17.6 mm) |
100 mm | ø 58 x 77 |
| LMC-ML-U1217SR | 12 mm | f/1.7–f/16 | 100 mm | ø 39.5 x 65.5 | |
| LMC-ML-U1615SR | 16 mm | f/1.5–f/16 | 100 mm | ø 39.5 x 67 | |
| LMC-ML-U2515SR | 25 mm | f/1.5–f/16 | 100 mm | ø 42 x 67 | |
| LMC-ML-U3518SR | 35 mm | f/1.8–f/16 | 195 mm | ø 39.5 x 54.5 | |
| LMC-ML-U5022SR | 50 mm | f/2.2–f/16 | 300 mm | ø 39.5 x 58.5 |
