UR Series
Price
฿ 0,00
- A vibration resistant, compact designed lens for ultra high-resolution sensors
- Up to 2/3" with a pixel size of 2.2 μm
- Along with an AR coating, transmitting visible to NIR (400–1000 nm)
Manufacturer:
Moritex
Availability:
In Stock
Standard and Large Format Lenses
Moritex standard and large format lenses provide flexible optical solutions for a range of applications. These lenses are compatible with different camera types, from low-resolution models to advanced area scan and line scan cameras with over 16 MP resolutions. This ensures optimal performance in various imaging scenarios and manufacturing environments.

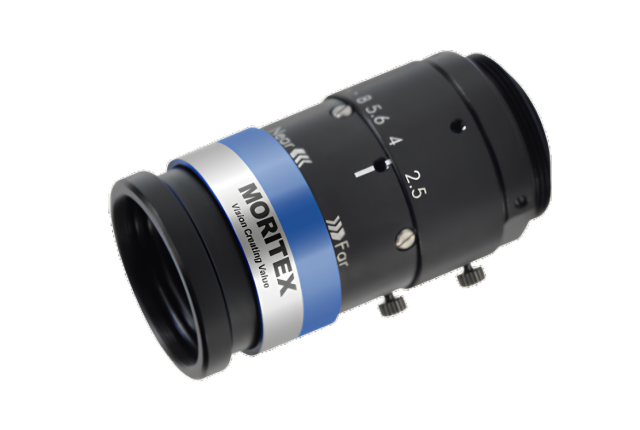

UR Series C-Mount Design
A vibration resistant, compact designed lens for ultra high-resolution sensors, up to 2/3" with a pixel size of 2.2 μm, along with an AR coating, transmitting
visible to NIR (400–1000 nm).
| Product ID | Focal Length |
F No. | Max. Sensor Size |
Min. WD |
Dimensions O.D. x Lens Tube Length (mm) |
| LMC-ML-M0625UR | 6 mm | f/2.5–f/16 | 2/3" (11 mm) |
100 mm | ø 29.5 x 50 |
| LMC-ML-M0822UR | 8 mm | f/2.2–f/16 | 100 mm | ø 29.5 x 37.8 | |
| LMC-ML-M1218UR | 12 mm | f/1.8–f/16 | 150 mm | ø 29.5 x 40.1 | |
| LMC-ML-M1616UR | 16 mm | f/1.6–f/16 | 150 mm | ø 29.5 x 37 | |
| LMC-ML-M2516UR | 25 mm | f/1.6–f/16 | 150 mm | ø 29.5 x 38.5 | |
| LMC-ML-M3520UR | 35 mm | f/2.0–f/16 | 200 mm | ø 29.5 x 38.2 | |
| LMC-ML-M5025UR | 50 mm | f/2.5–f/16 | 300 mm | ø 29.5 x 59.4 |
