ZR Series
- Designed for very high-resolution, large-format sensors up to 1.2" (Ø 19.3 mm) with 2.0 μm pixel sizes
- Delivers industry-leading performance in a compact form factor to support advanced factory automation applications
- Short minimum working distances and anti-reflective coatings optimized for visible to near-infrared (400–1000 nm) transmission provide added versatility
Standard and Large Format Lenses
Moritex standard and large format lenses provide flexible optical solutions for a range of applications. These lenses are compatible with different camera types, from low-resolution models to advanced area scan and line scan cameras with over 16 MP resolutions. This ensures optimal performance in various imaging scenarios and manufacturing environments.

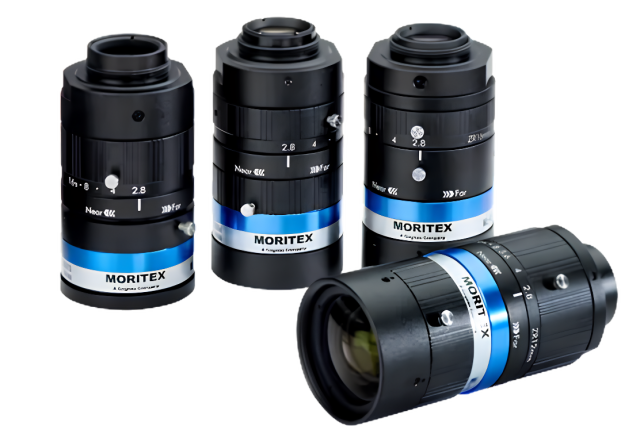

ZR Series C-Mount Design
Designed for very high-resolution, large-format sensors up to 1.2" (Ø 19.3 mm) with 2.0 μm pixel sizes, this lens series delivers industry-leading performance in a compact form factor to support advanced factory automation applications. Short minimum working distances and anti-reflective coatings optimized for visible to near-infrared (400–1000 nm) transmission provide added versatility.
| Product ID | Focal Length |
F No. | Max. Sensor Size |
Min. WD |
Dimensions O.D. x Lens Tube Length (mm) |
| ML-U1228ZR-19C | 12 mm | f/2.8–f/16 | 1.2" (11 mm) |
100 mm | ø 36 x 61.8 |
| ML-U1628ZR-19C | 16 mm | ø 40 x 69 | |||
| ML-U2528ZR-19C | 25 mm | ø 40 x 68.7 | |||
| ML-U3528ZR-19C | 35 mm | ø 40 x 64.5 |
