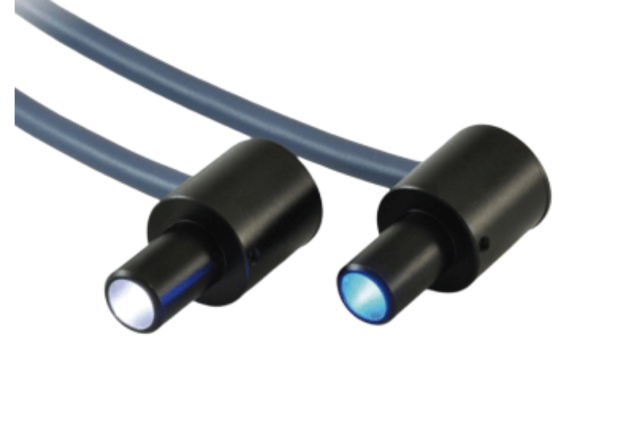

Coaxial Illumination
Coaxial spotlights optimized for telecentric machine micro lenses (MML)
MCEC Series
▪ Mid power range coaxial spot lights optimized for our telecentric machine micro lenses (MML) for excellent uniformity
▪ Higher brightness than MCEL-C*8 (Refer to Intensity Data)
▪ Compact and low cost solution
▪ Uses our Standard Power Supply Unit (MLEK) which is also used with all of our ring and backlight LEDs
| Model Name | Color |
Maximum Rated Current (A) |
| MCEC-CR8 | Red | 0.14 |
| MCEC-CG8 | Green | 0.15 |
| MCEC-CB8 | Blue | 0.15 |
| MCEC-CW8 | White | 0.15 |
MCEL Series
▪ Compact type coaxial lighting compatible with the MML Series
▪ Optimal for objects with highly reflective specular surfaces
▪ The products in the series provide a compact design at low cost
| Model Name | Color |
Maximum Rated Current (A) |
| MCEL-CR8 | Red | 0.04 |
| MCEL-CR8 | Green | 0.02 |
| MCEL-CB8 | Blue | 0.03 |
| MCEL-CW8 | White | 0.03 |
CV-CE Series
▪ Fully compatible with MORITEX telecentric lenses MML Series, achieving high illumination uniformity.
▪ Even smaller in size than previous models.
▪ L-shaped (right-angled) illumination cable contributes to saving installation space.
| Model Name | Color |
Maximum Rated Current (A) |
| CV-CE-14X8R | Red | 0.4 |
| CV-CE-14X8B | Blue | 0.8 |
| CV-CE-14X8W | White | 0.8 |
